ASIO Output Channels

The Virtual Audio Mixer discussions and support...
Post Reply
kylemccarley
Posts: 1
Joined: Sun Aug 16, 2020 12:04 am

ASIO Output Channels

Post by kylemccarley »

Is there a way to customize which inputs go to which channels on the virtual ASIO devices? Seems like everything goes to 1 and 2 as left and right and the other 6 channels are empty, and it'd be super cool to be able to change that.
Andres
Posts: 59
Joined: Fri May 01, 2020 7:25 pm

Re: ASIO Output Channels

Post by Andres »

Hi. In Voicemeeter you can select the COMPOSITE mode for virtual outputs (and hardware outputs) to "compose" the 8 output channels from the different input channels.

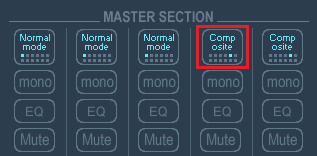

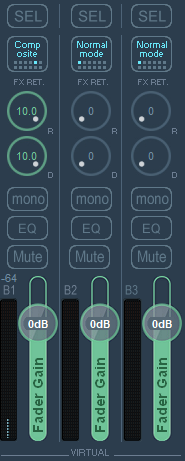

composite mode.png
composite mode.png (4.96 KiB) Viewed 96 times
Voicemeeter Banana and Potato provides the PATCH COMPOSITE section in System Settings / Options... windows. You can compose your signal PRE- or POST-Fader

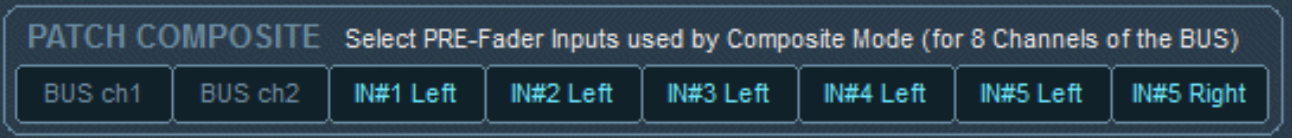

patch composite.PNG
patch composite.PNG (142.31 KiB) Viewed 111 times
In Voicemeeter Basic patch composite is fixed and only PRE-fader.

For more information see Voicemeeter Banana User Manual, page 19.
