Order of effects/filters in the Hardware Input Strips

[MasterVolume]

Hi!

In what order are the effects/filters in the hardware input strips (Potato 3.1.2.2) applied to the signal? Is there a schematic diagram or ordered list? I couldn't find it in the manual.

I'm particularly interested in whether I should set the noise gate or the compressor for a microphone signal first. But EQ, INTELLIPAN, Denoiser, special and external effects would also be interesting.

Thank you very much!

[Vincent Burel]

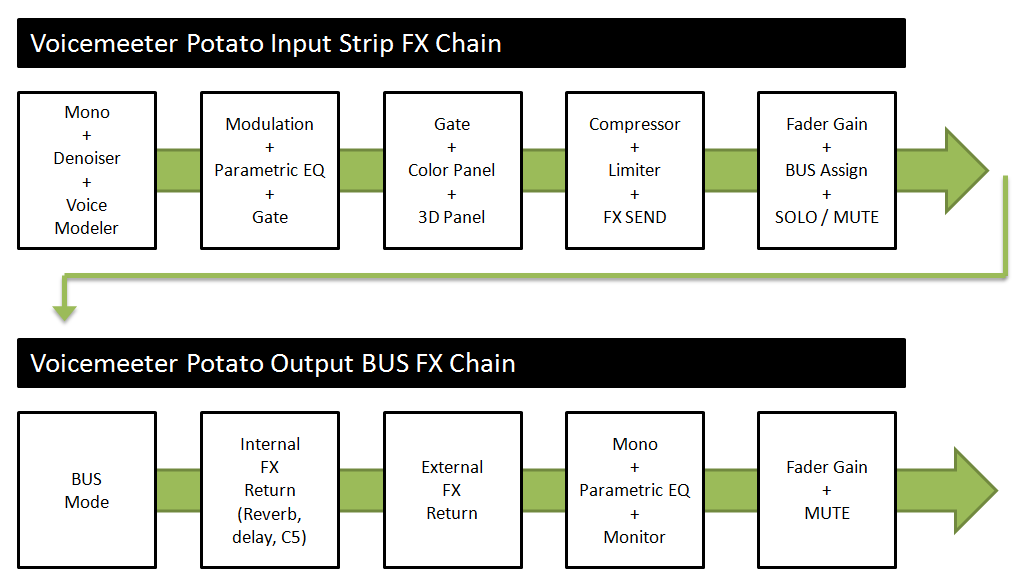

yes, i've made a schema but maybe not published, don't rememenber, i'm going to note it for the user manual:


[MasterVolume]

Thanks a lot, that really helps me!
