Voicemeeter will not open up at all (HDMI / Display port)

EthanSpitz · Post by **EthanSpitz** » Wed Sep 01, 2021 7:53 pm

Hi,

I just got a new laptop (windows update at the latest and all drivers from OEM at latest) and I'm a heavy Voicemeeter user. On my new laptop, when I install Banana, it's successful, but after reboot, when I go to start it up, nothing happens, I just get crash messages and it never runs. I uninstalled and reinstalled multiple times to no success. I decided that if banana didn't work, maybe potato would? So I loaded up potato and same thing, install goes smoothly, but at launch a bunch of errors. However, potato actually loads after a bunch of errors and I'm able to use it successfully. I found that MacroButtons also will never launch without crashing too.

Here's the errors I get at launch:

If I try to run the check driver installation tool, I get the first image crash (twice).

Here's some info on the crashes from the event log.

VBDeviceCheck.exe

Code: Select all

Faulting application name: VBDeviceCheck.exe, version: 1.0.7.7, time stamp: 0x605368d3
Faulting module name: VBDeviceCheck.exe, version: 1.0.7.7, time stamp: 0x605368d3
Exception code: 0xc000041d
Fault offset: 0x000058d9
Faulting process id: 0x3874
Faulting application start time: 0x01d79f61632514ab
Faulting application path: C:\Program Files (x86)\VB\Voicemeeter\VBDeviceCheck.exe
Faulting module path: C:\Program Files (x86)\VB\Voicemeeter\VBDeviceCheck.exe
Report Id: 2c38a877-52bd-4fac-90ab-d6b3b19ab8aa
Faulting package full name:
Faulting package-relative application ID:

VoicemeeterMacroButtons.exe

Code: Select all

Faulting application name: VoicemeeterMacroButtons.exe, version: 1.0.3.6, time stamp: 0x605a0875
Faulting module name: VoicemeeterMacroButtons.exe, version: 1.0.3.6, time stamp: 0x605a0875
Exception code: 0xc000041d
Fault offset: 0x00018d6f
Faulting process id: 0x5788
Faulting application start time: 0x01d79f5dee166f0b
Faulting application path: C:\Program Files (x86)\VB\Voicemeeter\VoicemeeterMacroButtons.exe
Faulting module path: C:\Program Files (x86)\VB\Voicemeeter\VoicemeeterMacroButtons.exe
Report Id: df4a8108-9e7a-4c16-b011-7e2e3468b533
Faulting package full name:
Faulting package-relative application ID:

If anyone has any suggestions on something to try or needs more information, please let me know.

Thanks!
Ethan

EthanSpitz · Post by **EthanSpitz** » Tue Sep 07, 2021 10:37 pm

I found out if I change the compatibility mode to Windows 8 for every exe in the Voicemeeter program folder it no longer crashes and everything runs. It still says I have driver errors though and I have this output. Not really sure how to resolve this as I've uninstalled and reinstalled multiple times already.

Code: Select all

INPUT DEVICE: 9
------------------------------------------------------------------
IN WDM Headset Microphone (Arctis 7 Chat) | INTELAUDIO\CTLR_DEV_43C8&LINKTYPE_06&DEVTYPE_06&VEN_8086&DEV_AE50&SUBSYS_00000028&REV_0001 | {bedcd6f0-4f28-4c6c-a4fd-0c8fefc4327e} | ICON: %windir%\system32\mmres.dll,-3015
IN WDM Microphone (Live Gamer MINI) | INTELAUDIO\CTLR_DEV_43C8&LINKTYPE_06&DEVTYPE_06&VEN_8086&DEV_AE50&SUBSYS_00000028&REV_0001 | {22212571-56a9-43bd-9b76-ec2204bde504} | ICON: %windir%\system32\mmres.dll,-3014
IN WDM VoiceMeeter Output (VB-Audio VoiceMeeter VAIO) | VBAudioVMVAIO | {5878cf4c-2ed2-4dce-8440-9c6f7f51cede} | ICON: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-101
IN KS  VoiceMeeter Aux vaio | VBAudioVMAUXVAIO | \\?\root#media#0001#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\wave
IN KS  VoiceMeeter VAIO3 | VBAudio100VMVAIO3 | \\?\root#media#0002#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\wave
IN KS  VoiceMeeter vaio | VBAudioVMVAIO | \\?\root#media#0000#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\wave
IN MME Headset Microphone (Arctis 7 Ch |  |  | ICON:
IN MME Microphone (Live Gamer MINI) |  |  | ICON:
IN MME VoiceMeeter Output (VB-Audio Vo | VBAudioVMVAIO | {5878cf4c-2ed2-4dce-8440-9c6f7f51cede} | ICON: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-101

OUTPUT DEVICE: 13
------------------------------------------------------------------
OUT WDM Headphones (Arctis 7 Game) | INTELAUDIO\CTLR_DEV_43C8&LINKTYPE_06&DEVTYPE_06&VEN_8086&DEV_AE50&SUBSYS_00000028&REV_0001 | {9f43ef89-80de-4490-9a92-6ac435d2d5a0} | ICON: %windir%\system32\mmres.dll,-3011
OUT WDM Headset Earphone (Arctis 7 Chat) | INTELAUDIO\CTLR_DEV_43C8&LINKTYPE_06&DEVTYPE_06&VEN_8086&DEV_AE50&SUBSYS_00000028&REV_0001 | {047b327a-5dbb-4767-be13-ec8924c7f223} | ICON: %windir%\system32\mmres.dll,-3015
OUT WDM VoiceMeeter Aux Input (VB-Audio VoiceMeeter AUX VAIO) | VBAudioVMAUXVAIO | {3d0c59b5-ab7d-4ac0-b57c-a4a95424ff0c} | ICON: %windir%\system32\Drivers\vbaudio_vmauxvaio64_win10.sys,-100
OUT WDM VoiceMeeter Input (VB-Audio VoiceMeeter VAIO) | VBAudioVMVAIO | {cc84bc77-cab0-4a77-b14d-68c56f62cbd0} | ICON: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-100
OUT KS  Realtek USB Audio | USB\VID_0BDA&PID_402E&REV_0001&MI_00 | \\?\usb#vid_0bda&pid_402e&mi_00#8&e651dd6&0&0000#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\waveout1
OUT KS  Realtek USB Audio [A] | USB\VID_0BDA&PID_402E&REV_0001&MI_00 | \\?\usb#vid_0bda&pid_402e&mi_00#8&e651dd6&0&0000#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\waveout2
OUT KS  VoiceMeeter Aux vaio | VBAudioVMAUXVAIO | \\?\root#media#0001#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\wave
OUT KS  VoiceMeeter VAIO3 | VBAudio100VMVAIO3 | \\?\root#media#0002#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\wave
OUT KS  VoiceMeeter vaio | VBAudioVMVAIO | \\?\root#media#0000#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\wave
OUT MME Headphones (Arctis 7 Game) |  |  | ICON:
OUT MME Headset Earphone (Arctis 7 Chat |  |  | ICON:
OUT MME VoiceMeeter Aux Input (VB-Audio | VBAudioVMAUXVAIO | {3d0c59b5-ab7d-4ac0-b57c-a4a95424ff0c} | ICON: %windir%\system32\Drivers\vbaudio_vmauxvaio64_win10.sys,-100
OUT MME VoiceMeeter Input (VB-Audio Voi | VBAudioVMVAIO | {cc84bc77-cab0-4a77-b14d-68c56f62cbd0} | ICON: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-100

------------------------------------------------------------------
CHECKING VB-Audio Virtual Cable : Not Installed
CHECKING VB-Audio Cable A : Not Installed
CHECKING VB-Audio Cable B : Not Installed
CHECKING VB-Audio Cable C : Not Installed
CHECKING VB-Audio Cable D : Not Installed
CHECKING VB-Audio MT128 Virtual I/O : Not Installed
CHECKING VB-Audio Hi-Fi Cable : Not Installed
CHECKING VB-Audio VoiceMeeter VAIO (version 02010502)
   *ERROR MME Input - Bad Pin Icon: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-101
   *ERROR MME Output - Bad Pin Icon: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-100
   *ERROR WDM Input - Bad Pin Icon: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-101
   *ERROR WDM Output - Bad Pin Icon: %windir%\system32\Drivers\vbaudio_vmvaio64_win10.sys,-100
   *ERROR TOTAL FOUND: 4
CHECKING VB-Audio VoiceMeeter AUX VAIO (version 02010502)
   *ERROR MME Recording Device not listed.
   *ERROR MME Output - Bad Pin Icon: %windir%\system32\Drivers\vbaudio_vmauxvaio64_win10.sys,-100
   *ERROR WDM Recording Device not listed.
   *ERROR WDM Output - Bad Pin Icon: %windir%\system32\Drivers\vbaudio_vmauxvaio64_win10.sys,-100
   *ERROR TOTAL FOUND: 4
CHECKING VB-Audio VoiceMeeter VAIO3 (version 02010502)
   *ERROR MME Recording Device not listed.
   *ERROR MME Playback Device not listed.
   *ERROR WDM Recording Device not listed.
   *ERROR WDM Playback Device not listed.
   *ERROR TOTAL FOUND: 4
------------------------------------------------------------------
TEST DATE: 2021/09/07 - 21:33:45 (Checker Version 1.0.7.7)
Operating System: WIN 8 64Bits Build: 9200
CONCLUSION: 12 error detected (You may consider re-installing audio drivers)

Wondering if the dirver check is failing due to compatibility mode, it even thinks it's WIN 8 Build 9200, even though I'm on WIN 10 20H2 19042.1165

Post by **Vincent Burel** » Fri Sep 10, 2021 2:25 pm

we have already seen the case with bad HDMI driver (intel audio display driver). just de-install or disable this audio driver.

some topic about the subject:
https://www.windowsphoneinfo.com/thread ... sh.585216/
https://answers.microsoft.com/en-us/win ... dff4943390

EthanSpitz · Post by **EthanSpitz** » Sun Oct 03, 2021 9:46 am

Oh great! Sorry just seeing this response, I thought I'd get email notifications when someone responded. I'll try this on Monday when I turn my work laptop on again!

To be clear, should I be able to remove the windows 8 compatibility mode then too? Or should that just fix the bad driver check?

Post by **Vincent Burel** » Mon Oct 04, 2021 7:31 am

yes , the compatibility mode is normally not required.

tarosk · Post by **tarosk** » Sat Dec 11, 2021 1:24 pm

I have same problem on new HP ProBook 640 G8 - voicemeeter won't start - process disappears after starting with Intel HD audio driver for display audio version 30.0.100.9864

According to both Microsoft Windows Update and HP Assistant this is latest version of display driver.

Even VBDeviceCheck.exe won't start with this device enabled.

Let me know what other information I can post to help investigate this issue.

tarosk · Post by **tarosk** » Sat Dec 11, 2021 1:36 pm

Used Intel® Driver & Support Assistant to install latest Intel drivers version 30.0.101.1069, bu it did not help. Voicemeeter apps still silently crash right after start.

Intel® Graphics – Windows* DCH Drivers
Description:
This download installs the Intel® Graphics Driver for Xe Dedicated, 6th-12th Gen Intel® Core™ Processor Graphics, and related Intel Atom®, Pentium®, and Celeron® processors.
Version: 30.0.101.1069
Release date: November 11, 2021

tarosk · Post by **tarosk** » Sat Dec 11, 2021 2:44 pm

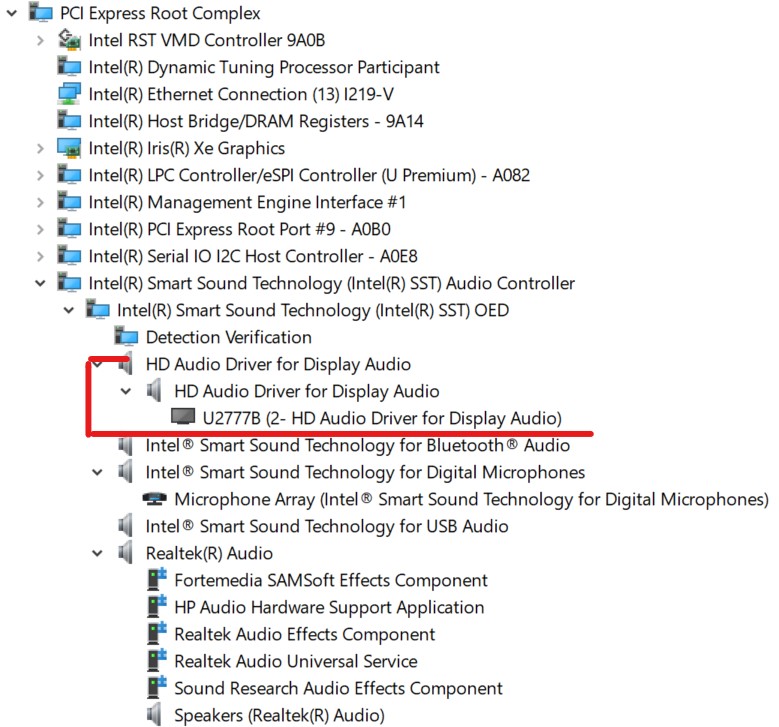

One more note, there are two "HD Audio Driver for Display Audio" device in Device manager and disabling first of them removes the second. I think this might have something to do with DisplayPort Multistream support (just hypothesis).

Post by **Vincent Burel** » Sat Dec 11, 2021 3:10 pm

Thanks for the information, for the moment we have not been in direct contact with this bug
we just think this is certainly happening during the audio device enumeration... incredible...

that's why the VBDriverChecker crashes as well , (it is mainly enumerating audio devices).

tarosk · Post by **tarosk** » Sat Dec 11, 2021 6:29 pm

It is standard built in Inter Iris Xe graphics. HW IDs from device manager if this helps.

INTELAUDIO\SGPC_FUNC_01&VEN_8086&DEV_2812&SUBSYS_80860101&REV_1000
INTELAUDIO\SGPC_FUNC_01&VEN_8086&DEV_2812&SUBSYS_80860101

Device INTELAUDIO\SGPC_FUNC_01&VEN_8086&DEV_2812&SUBSYS_80860101&REV_1000\5&1ba4af2&0&0201 was started.

Driver Name: oem219.inf
Class Guid: {4d36e96c-e325-11ce-bfc1-08002be10318}
Service: AcxHdAudio
Lower Filters:
Upper Filters:
