VBVMR General Information

[Vincent Burel]

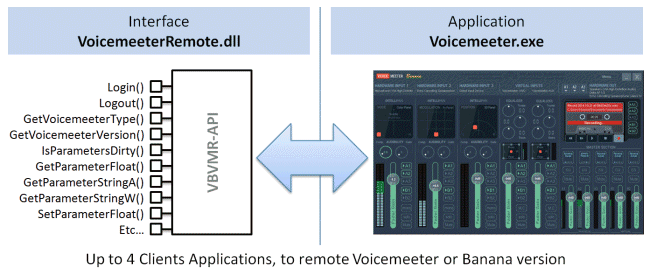

VoicemeeterRemote API is given by a simple standard DLL file for Windows to control Voicemeeter Audio Engine by another application, programmed in any language. It allows using voicemeeter functions and take advantage of Voicemeeter features in a client application. For example to make a more adapted user interface to a specific workflow, or to simply make a macro command to set different parameters at once, change the devices configuration and any kind of automation…

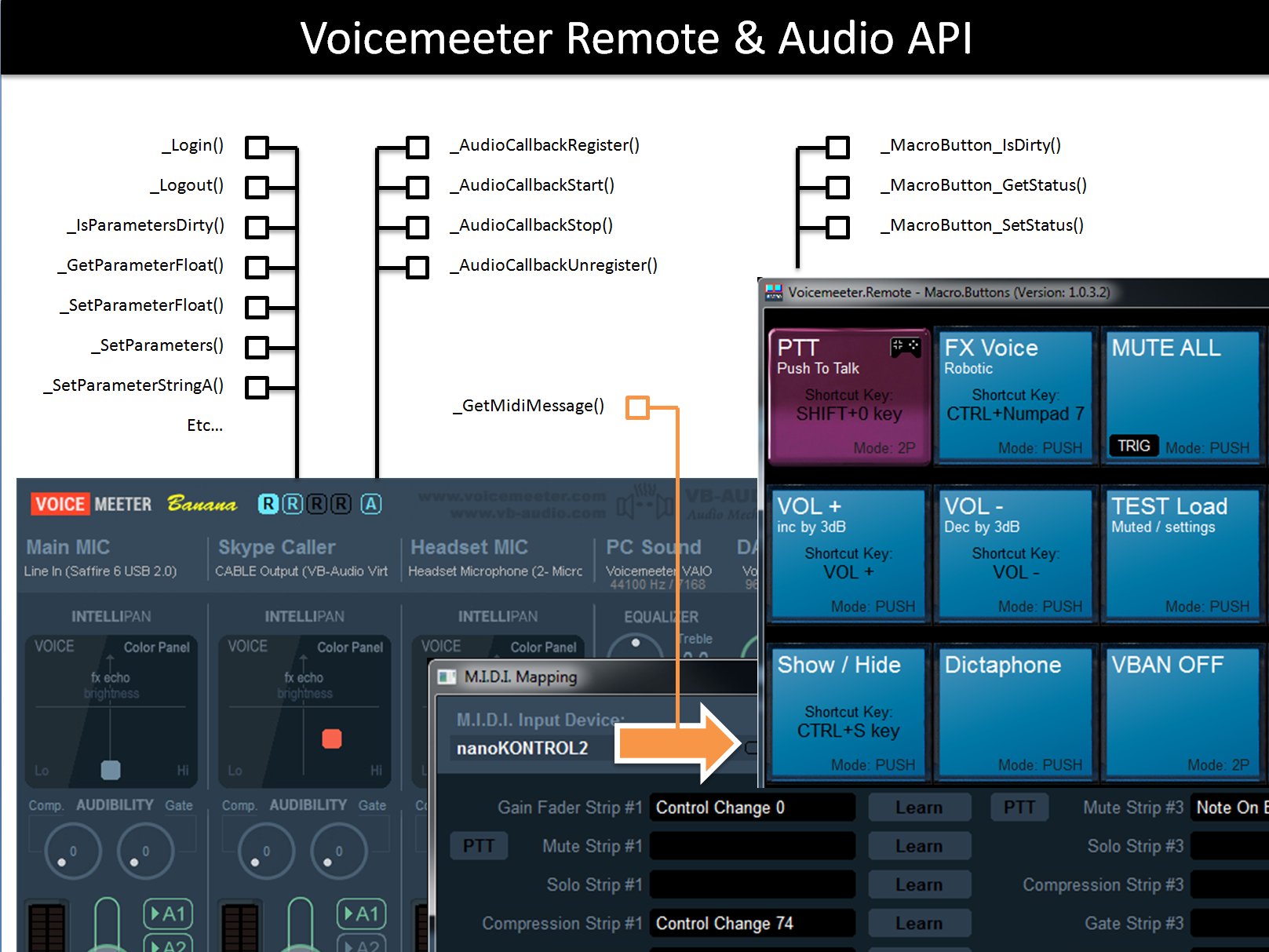

VoicemeeterRemote API also provides AUDIO API to process audio inside Voicemeeter through a simple callback mechanism.


Signal interoperability is given by existing audio interfaces (MME, KS, WASAPI, Direct-X, ASIO) and also a specific AUDIO API. Programmer can use Voicemeeter Virtual I/O to send or get Audio signal. He can also use Voicemeeter ASIO Insert Virtual Driver to process signal inside Voicemeeter Banana on all input strips.

VOICEMEETER REMOTE API SDK DIRECT LINK:
http://download.vb-audio.com/Download_C ... Pack11.zip

VOICEMEETER REMOTE API SDK on GitHub:
https://github.com/vburel2018/Voicemeeter-SDK

Included In the VoicemeeterRemote API Package:
- VoicemeeterRemote.h (Reference ‘C’ Header file)
- VoicemeeterRemoteAPI.pdf (current documentation).

DOCUMENTATION DIRECT LINK:
http://download.vb-audio.com/Download_C ... oteAPI.pdf

- Example0: Win 32/64 bits client Application example (in ‘C’) showing the different
communication mechanisms (executable and source code).

- vmr_matrix: Win 32/64 bits client Application example of Audio Processing Object inserted
on a selected BUS to provide a 8x8 gain matrix (executable and source code).

- vmr_osd: Win 32/64 bits client Application example to show last moved gain slider
On Screen Displayed (executable and source code).

- vmr_play: Client application programmed in 'C' demonstrating "Audio Insert"
Playback a Sinus signal into a given pre-fader input of Voicemeeter

- vmr_streamer: Client application programmed in 'C' demonstrating "Custom GUI"
Provides a Custom Graphic user interface to control Voicemeeter in a simpler way
(or by local access with Voicemeeter Remote API, or by VBAN protocol and RTPacket Services)

- Some Script: different text file changing different group of parameters.

REM: VoicemeeterRemote.dll & VoicemeeterRemote64.dll are installed with Voicemeeter (in the same folder of Voicemeeter application).

Other information and example will come in this forum...

[Vincent Burel]

VoicemeeterRemote.dll is in the same direcctory of Voicemeeter (done since package 2.0.2.3).

as it is shown in the vmr_client.c source code, the VoicemeeterRemote.dll can be found by the UNINSTALLATION key in the registry:

Code: Select all

static char uninstDirKey[]="SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Uninstall";

#define INSTALLER_UNINST_KEY	"VB:Voicemeeter {17359A74-1236-5467}"

void RemoveNameInPath(char * szPath)
{
	long ll;
	ll=(long)strlen(szPath);
	while ((ll>0) && (szPath[ll]!='\\')) ll--;
	if (szPath[ll] == '\\') szPath[ll]=0;
}

#ifndef KEY_WOW64_32KEY
	#define KEY_WOW64_32KEY 0x0200
#endif

BOOL __cdecl RegistryGetVoicemeeterFolder(char * szDir)
{
	char szKey[256];
	char sss[1024];
	DWORD nnsize=1024;
	HKEY hkResult;
	LONG rep;
	DWORD pptype=REG_SZ;
	sss[0]=0;

	// build Voicemeeter uninstallation key
	strcpy(szKey,uninstDirKey);
	strcat(szKey,"\\");
	strcat(szKey,INSTALLER_UNINST_KEY);

	// open key
	rep=RegOpenKeyEx(HKEY_LOCAL_MACHINE,szKey,0, KEY_READ, &hkResult);
	if (rep != ERROR_SUCCESS)
	{
		// if not present we consider running in 64bit mode and force to read 32bit registry
		rep=RegOpenKeyEx(HKEY_LOCAL_MACHINE,szKey,0, KEY_READ | KEY_WOW64_32KEY, &hkResult);
	}
	if (rep != ERROR_SUCCESS) return FALSE;
	// read uninstall profram path
	rep=RegQueryValueEx(hkResult,"UninstallString",0,&pptype,(unsigned char *)sss,&nnsize);
	RegCloseKey(hkResult);

	if (pptype != REG_SZ) return FALSE;
	if (rep != ERROR_SUCCESS) return FALSE;
	// remove name to get the path only
	RemoveNameInPath(sss);
	if (nnsize>512) nnsize=512;
	strncpy(szDir,sss,nnsize);

	return TRUE;
}

The Dynamic Link To VoicemeeterRemote.dll is made by the function InitializeDLLInterfaces:

Code: Select all

long InitializeDLLInterfaces(void)
{
	char szDllName[1024];
	memset(&iVMR,0,sizeof(T_VBVMR_INTERFACE));

	//get folder where is installed Voicemeeter
	if (RegistryGetVoicemeeterFolder(szDllName) == FALSE)
	{
		// voicemeeter not installed
		return -100;
	}
	//use right dll according O/S type
	if (sizeof(void*) == 8) strcat(szDllName,"\\VoicemeeterRemote64.dll");
	else strcat(szDllName,"\\VoicemeeterRemote.dll");

	// Load Dll
	G_H_Module=LoadLibrary(szDllName);
	if (G_H_Module == NULL) return -101;

	// Get function pointers
	iVMR.VBVMR_Login					=(T_VBVMR_Login)GetProcAddress(G_H_Module,"VBVMR_Login");
	iVMR.VBVMR_Logout					=(T_VBVMR_Logout)GetProcAddress(G_H_Module,"VBVMR_Logout");
	iVMR.VBVMR_RunVoicemeeter			=(T_VBVMR_RunVoicemeeter)GetProcAddress(G_H_Module,"VBVMR_RunVoicemeeter");
	iVMR.VBVMR_GetVoicemeeterType		=(T_VBVMR_GetVoicemeeterType)GetProcAddress(G_H_Module,"VBVMR_GetVoicemeeterType");
	iVMR.VBVMR_GetVoicemeeterVersion	=(T_VBVMR_GetVoicemeeterVersion)GetProcAddress(G_H_Module,"VBVMR_GetVoicemeeterVersion");

	iVMR.VBVMR_IsParametersDirty		=(T_VBVMR_IsParametersDirty)GetProcAddress(G_H_Module,"VBVMR_IsParametersDirty");
	iVMR.VBVMR_GetParameterFloat		=(T_VBVMR_GetParameterFloat)GetProcAddress(G_H_Module,"VBVMR_GetParameterFloat");
	iVMR.VBVMR_GetParameterStringA		=(T_VBVMR_GetParameterStringA)GetProcAddress(G_H_Module,"VBVMR_GetParameterStringA");
	iVMR.VBVMR_GetParameterStringW		=(T_VBVMR_GetParameterStringW)GetProcAddress(G_H_Module,"VBVMR_GetParameterStringW");
	iVMR.VBVMR_GetLevel					=(T_VBVMR_GetLevel)GetProcAddress(G_H_Module,"VBVMR_GetLevel");

	iVMR.VBVMR_SetParameterFloat		=(T_VBVMR_SetParameterFloat)GetProcAddress(G_H_Module,"VBVMR_SetParameterFloat");
	iVMR.VBVMR_SetParameters			=(T_VBVMR_SetParameters)GetProcAddress(G_H_Module,"VBVMR_SetParameters");
	iVMR.VBVMR_SetParametersW			=(T_VBVMR_SetParametersW)GetProcAddress(G_H_Module,"VBVMR_SetParametersW");
	iVMR.VBVMR_SetParameterStringA		=(T_VBVMR_SetParameterStringA)GetProcAddress(G_H_Module,"VBVMR_SetParameterStringA");
	iVMR.VBVMR_SetParameterStringW		=(T_VBVMR_SetParameterStringW)GetProcAddress(G_H_Module,"VBVMR_SetParameterStringW");

	iVMR.VBVMR_Output_GetDeviceNumber	=(T_VBVMR_Output_GetDeviceNumber)GetProcAddress(G_H_Module,"VBVMR_Output_GetDeviceNumber");
	iVMR.VBVMR_Output_GetDeviceDescA	=(T_VBVMR_Output_GetDeviceDescA)GetProcAddress(G_H_Module,"VBVMR_Output_GetDeviceDescA");
	iVMR.VBVMR_Output_GetDeviceDescW	=(T_VBVMR_Output_GetDeviceDescW)GetProcAddress(G_H_Module,"VBVMR_Output_GetDeviceDescW");
	iVMR.VBVMR_Input_GetDeviceNumber	=(T_VBVMR_Input_GetDeviceNumber)GetProcAddress(G_H_Module,"VBVMR_Input_GetDeviceNumber");
	iVMR.VBVMR_Input_GetDeviceDescA		=(T_VBVMR_Input_GetDeviceDescA)GetProcAddress(G_H_Module,"VBVMR_Input_GetDeviceDescA");
	iVMR.VBVMR_Input_GetDeviceDescW		=(T_VBVMR_Input_GetDeviceDescW)GetProcAddress(G_H_Module,"VBVMR_Input_GetDeviceDescW");


	return 0;
}

[Vincent Burel]

VoicemeeterRemote API allows changing parameters by simple text request

with single request function: here to mute the first strip of Voicemeeter:

Code: Select all

iVMR.VBVMR_SetParameterFloat("Strip[0].mute", 1.0f);

with script request function: to send several request in the same time:

Code: Select all

iVMR.VBVMR_SetParameters("Strip[0].gain=-30.0;Strip[0].mute=0\n"
	"Strip[1].gain=-30.0;Strip[1].mute=0\n"
	"Strip[2].gain=-30.0;Strip[2].mute=0\n");

in the VoicemeeterRemoteAPI package, vmr_client program exemple is also given with several script file to make some test, like TestStrip.txt

Strip[0].mono=0;
Strip[0].Mute=0;
Strip[0].solo=0;
Strip[0].gain=0;
Strip[0].pan_x=0;
Strip[0].pan_y=0;
Strip[0].color_x=0;
Strip[0].color_y=0;
Strip[0].fx_x=0;
Strip[0].fx_y=0;
Strip[0].comp=0;
Strip[0].gate=0;

Strip[1].mono=0;
Strip[1].Mute=0;
Strip[1].solo=0;
Strip[1].gain=0;
Strip[1].pan_x=0;
Strip[1].pan_y=0;
Strip[1].color_x=0;
Strip[1].color_y=0;
Strip[1].fx_x=0;
Strip[1].fx_y=0;
Strip[1].comp=0;
Strip[1].gate=0;

Strip[2].mono = 0;
Strip[2].Mute = 0;
Strip[2].solo= 0;
Strip[2].gain= 0;
Strip[2].pan_x= 0;
Strip[2].pan_y =0;
Strip[2].color_x= 0;
Strip[2].color_y = 0;
Strip[2].fx_x = 0;
Strip[2].fx_y = 0;
Strip[2].comp = 0;
Strip[2].gate = 0;

Strip[3].mc=0;
Strip[3].Mute=0;
Strip[3].solo=0;
Strip[3].gain=0;
Strip[3].pan_x=0;
Strip[3].pan_y=0;
Strip[3].EQgain1=0.0;
Strip[3].EQgain2=0.0;
Strip[3].EQgain3=0.0;

Strip[4].mc=0;
Strip[4].Mute=0;
Strip[4].solo=0;
Strip[4].gain=0;
Strip[4].pan_x=0;
Strip[4].pan_y=0;
Strip[4].EQgain1=0.0;
Strip[4].EQgain2=0.0;
Strip[4].EQgain3=0.0;

All requests are documented in VoicemeeterRemoteAPI.pdf
