Latest VoiceMeeter Banana Fails to Load WDM Discrete 4 Audio Interface

The Virtual Audio Mixer discussions and support...
Post Reply
hydrobrain
Posts: 2
Joined: Mon Jun 04, 2018 3:42 am

Latest VoiceMeeter Banana Fails to Load WDM Discrete 4 Audio Interface

Post by hydrobrain »

After updating to the latest version of VoiceMeeter Banana 2.0.4.8 my Antelope Discrete 4 Mic Preamp no longer can be used via WDM. It only works via MME. I'm using Antelope Audios USB 2.0 drivers. When I cleared the configs and tried to reconfigure everything from scratch, the application crashes when I select WDM Discrete 4 as input for Hardware Input 1. I'm running on Windows 10. WDM on Discrete 4 was working before the update.

Windows Event Viewer Application Log Error:

Code: Select all

Faulting application name: voicemeeterpro.exe, version: 2.0.4.8, time stamp: 0x5d0b2022
Faulting module name: ntdll.dll, version: 10.0.18362.356, time stamp: 0x8de1c53a
Exception code: 0xc0000374
Fault offset: 0x000df94d
Faulting process id: 0x30e0
Faulting application start time: 0x01d56ab25b45c540
Faulting application path: C:\Program Files (x86)\VB\Voicemeeter\voicemeeterpro.exe
Faulting module path: C:\WINDOWS\SYSTEM32\ntdll.dll
Report Id: 70a2bd4e-8180-4d39-9c9b-3638e299f542
Faulting package full name:
Faulting package-relative application ID:

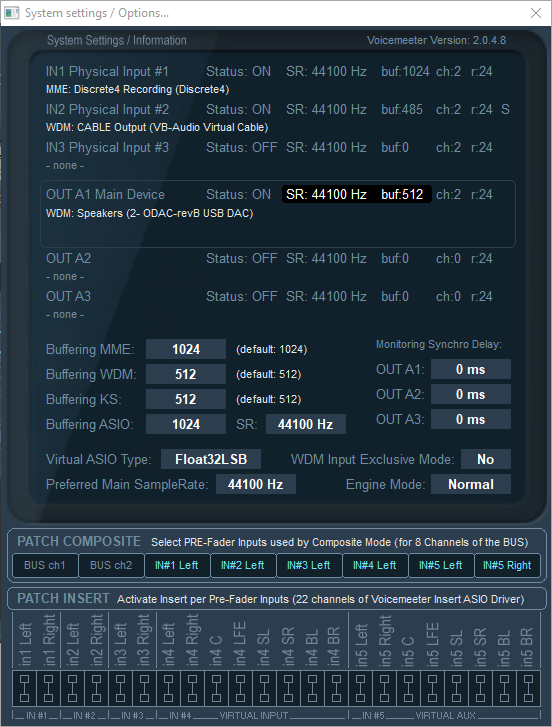

I've attached images of my configuration and system settings in VoiceMeeter Banana.
Attachments
Vincent Burel
Site Admin
Posts: 2155
Joined: Sun Jan 17, 2010 12:01 pm

Re: Latest VoiceMeeter Banana Fails to Load WDM Discrete 4 Audio Interface

Post by Vincent Burel »

you may check your audio device list in Windows Sound Dialog box...
that they are well installed with right name and right icon
viewtopic.php?f=7&t=688
hydrobrain
Posts: 2
Joined: Mon Jun 04, 2018 3:42 am

Re: Latest VoiceMeeter Banana Fails to Load WDM Discrete 4 Audio Interface

Post by hydrobrain »

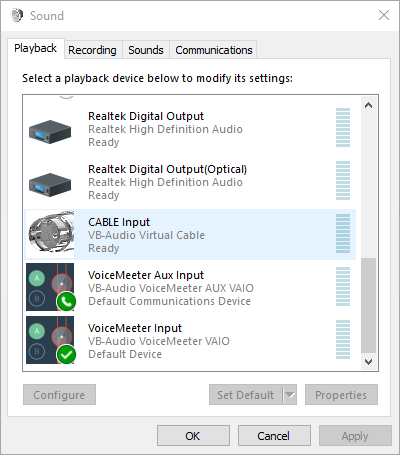

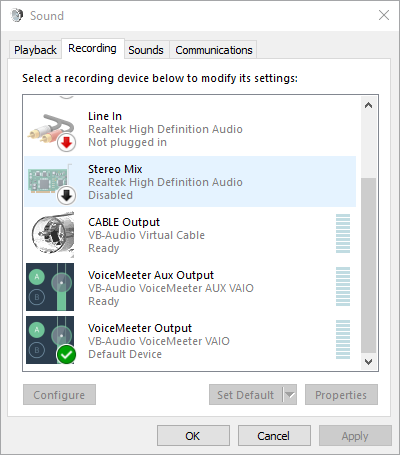

I've attached my sound setting control panel screens. Please tell me if it looks incorrect.
Attachments
Vincent Burel
Site Admin
Posts: 2155
Joined: Sun Jan 17, 2010 12:01 pm

Re: Latest VoiceMeeter Banana Fails to Load WDM Discrete 4 Audio Interface

Post by Vincent Burel »

all seems to be ok...

is there an ASIO driver for your device ? if yes, maybe the solution is to use it as output A1.
